Coupling Components

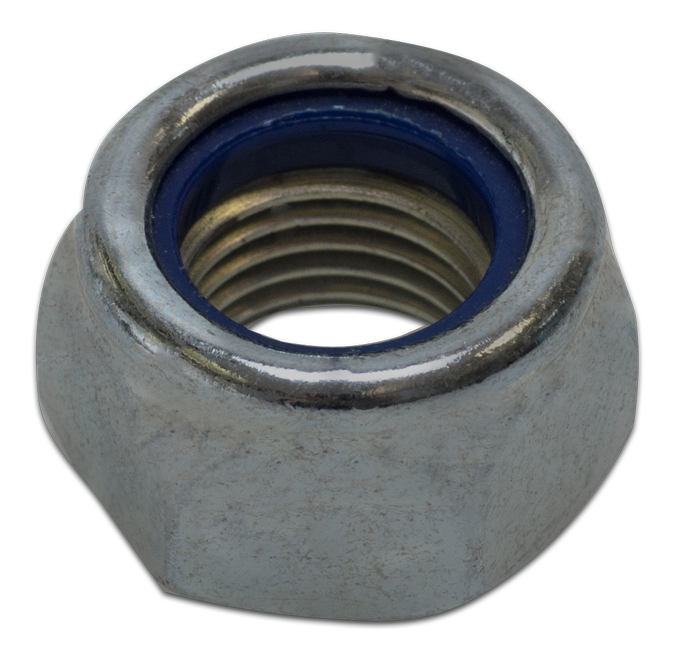

Nut Nut Material: 9 SMn Pb 36
Diameter: Hex 27 mm.
Length: 16 mm.

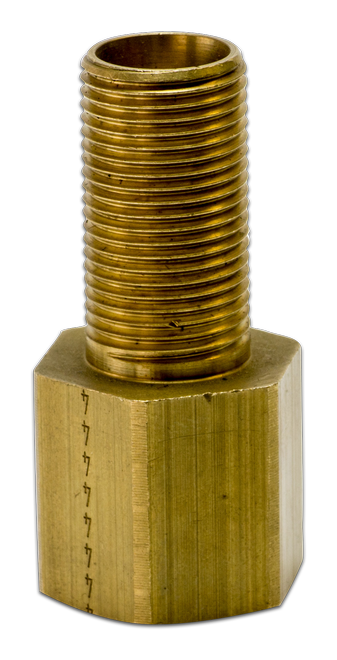

Coating: Black Zinc Ubergangsstutzen Ubergangsstutzen Material: CuZn 40 Pb 2
Diameter: Hex 27 mm.
Length: 63 mm.

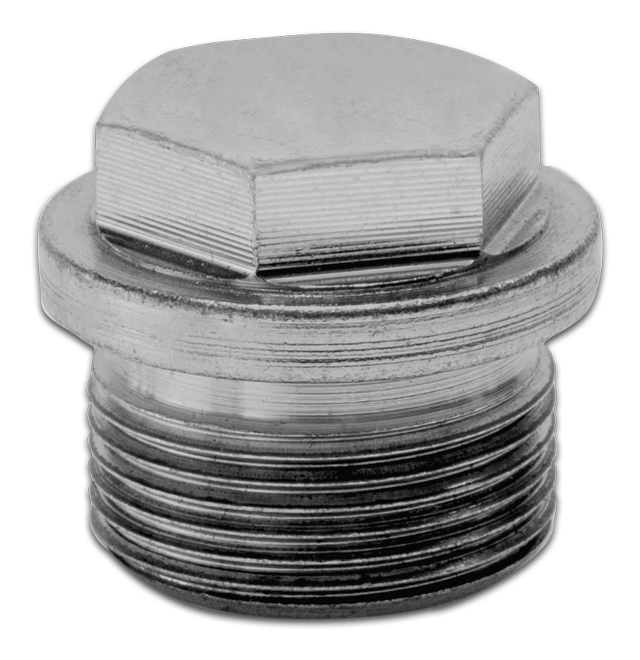

Tapping : m 18 x 1,5 Verschlussschraube Verschlussschraube Material: 9 SMn 28
Diameter: Ø 31 mm.
Length: 27 mm.
Coating: Black Zinc Einshraubverschr Einshraubverschr Material: CuZn39Pb 2
Diameter: Ø 15 mm.

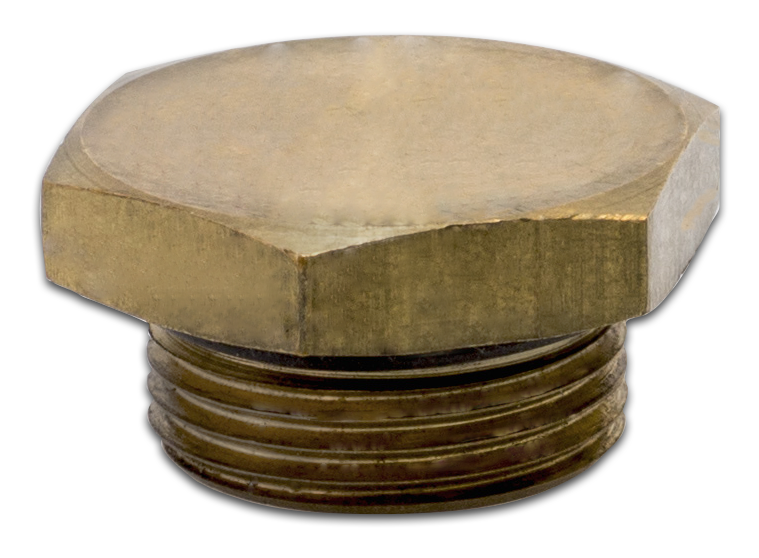

Length: 14 mm. Stopfen Mit O-Ring Stopfen Mit O-Ring Material: CuZn39Pb 2
Diameter: Hex 28 mm.

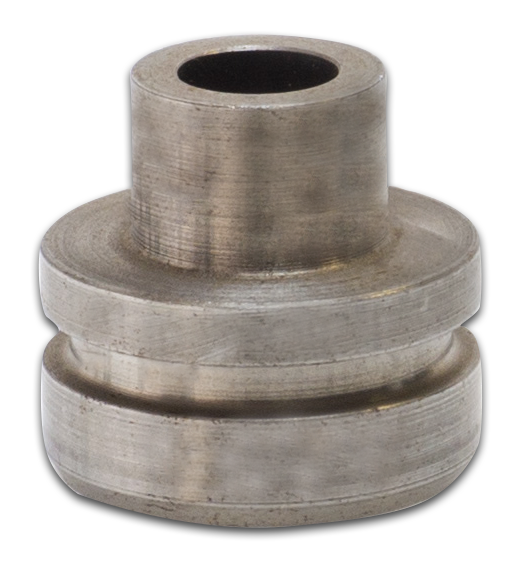

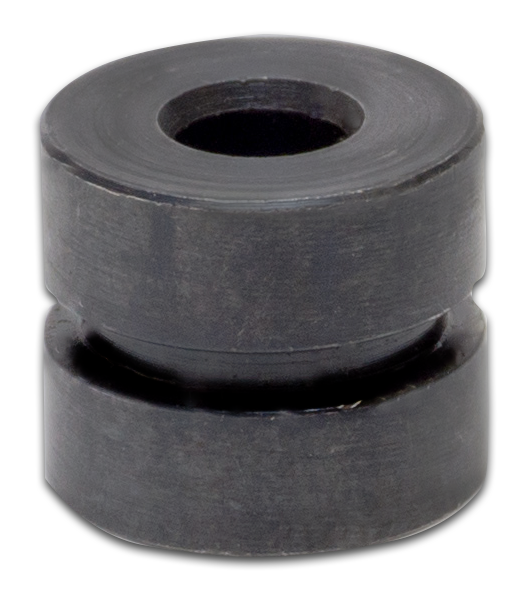

Length: 13 mm. Boccola Per Correttore Boccola Per Correttore Material: 9 SMn Pb 36
Diameter: Ø 17 mm.
Length: 14 mm.

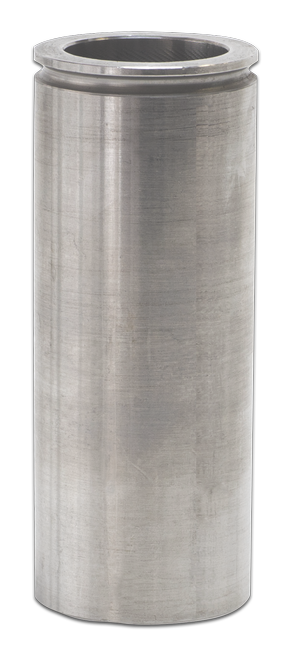

Coating: Oxidation Buchse Buchse Material: 9 SMn Pb 28
Diameter: Ø 36 mm.
Length: 77 mm. Bussola Guida Stantuffo Bussola Guida Stantuffo Material: 9 SMn Pb 36
Diameter: Ø 22 mm.
Length: 20,50 mm. Stutzen Stutzen Material: 9 SMn Pb 36
Diameter: Hex 24 mm.
Length: 38 mm.

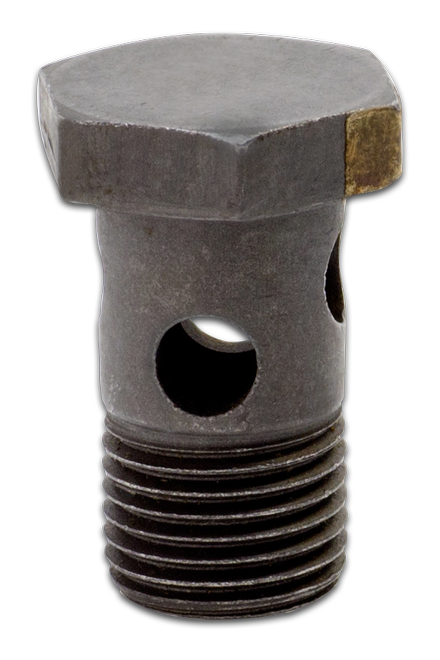

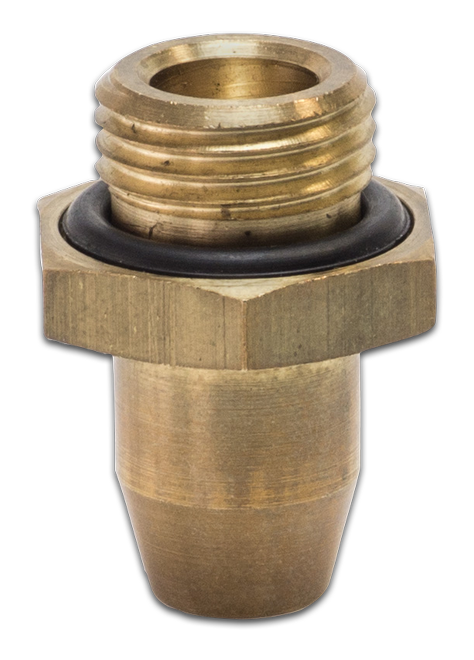

Coating: Zinc Phosphate Einshraubverschr Einshraubverschr Material: CuZn39Pb 2
Diameter: Ø 15 mm. - Hex 22 mm.

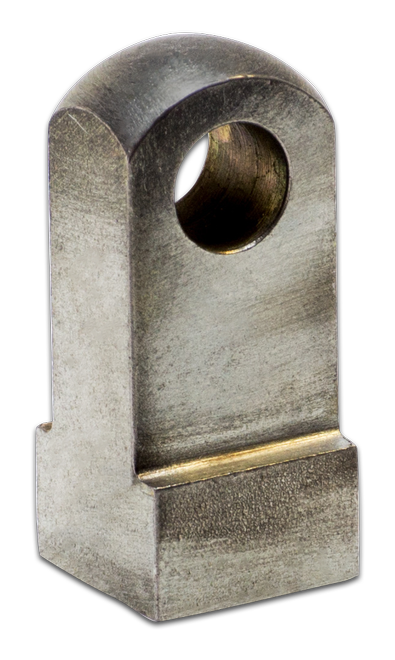

Length: 37,5 mm. Chape Reglable Chape Reglable Material: 9 SMn Pb 36
Diameter: 18 x 18 kare
Length: 32 mm.

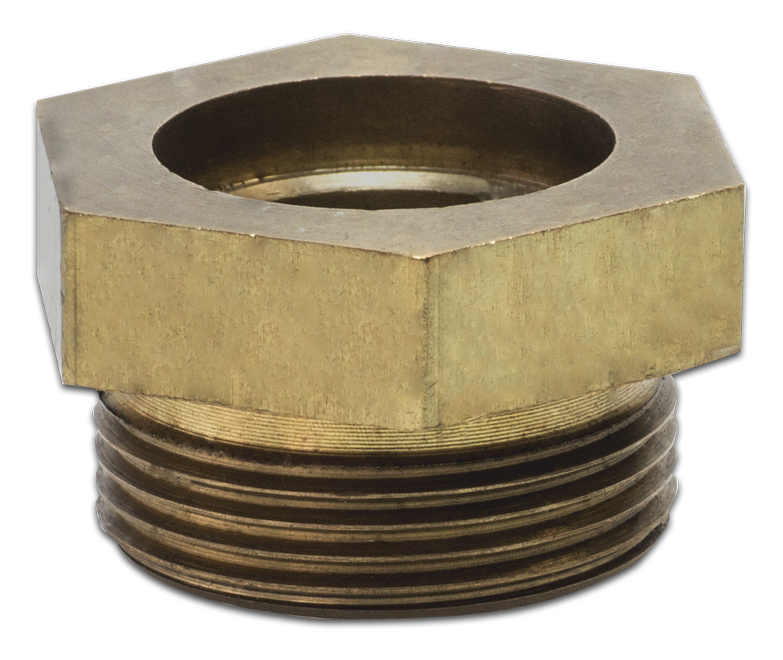

Coating: Black Zinc Lötstutzen Lötstutzen Material: CuZn40Pb 2
Diameter: Hex 32 mm.
Length: 24 mm. Tapered Thread Tapered Thread Material: 9 SMn Pb 28
Diameter: Ø 16 mm.
Length: 38 mm.

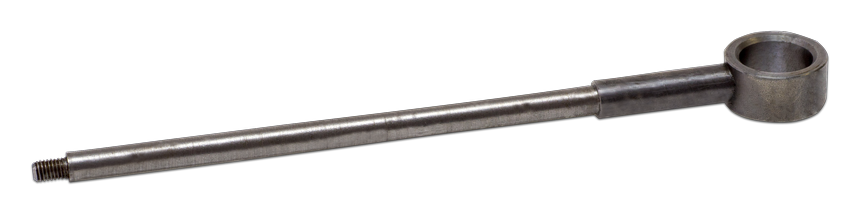

Coating: Black Zinc Asta Completa Per Asta Completa Per Material: 9 SMn Pb 28
Diameter: Ø 9 mm. - Ø 24 mm.
Length: 155 mm.

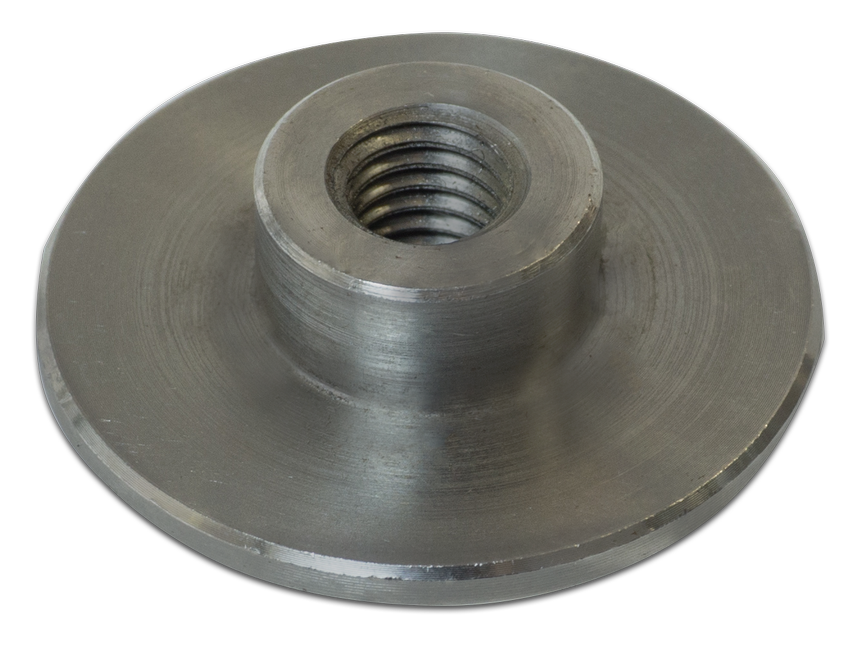

 Flake Flake Material: 9 SMn Pb 36
Diameter: Ø 35 mm.
Length: 10 mm.
Coating: Manganese
